Rough Country

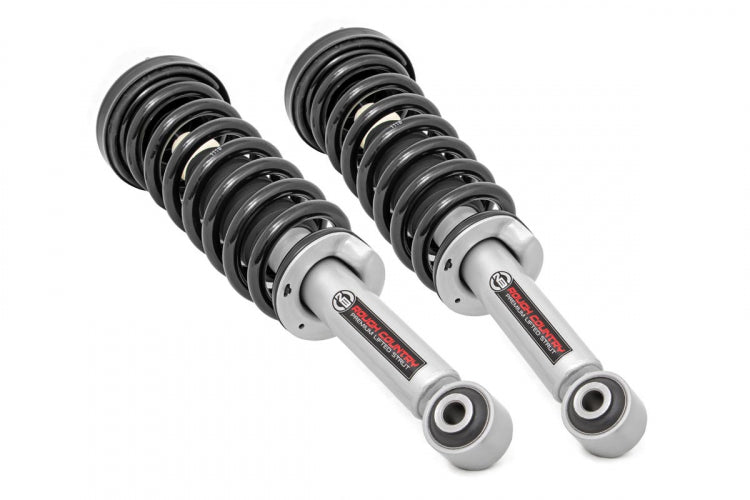

2 INCH LEVELING KIT LOADED STRUT | FORD F-150 4WD (2009-2013)
2 INCH LEVELING KIT LOADED STRUT | FORD F-150 4WD (2009-2013)
PRICE INCLUDES PARTS AND INSTALLATION
Level your vehicle from front to rear while preserving the smooth, factory ride quality with Rough Country's N3 Strut Leveling Kit! This easy-to-install kit boosts the front end, removing the unsightly factory rake and giving your truck increased ground clearance and aggressive good looks.
Rough Country’s N3 Struts feature a massive bore and chrome plated piston rod with leak-proof piston seal for exceptional durability during off-road use. Each strut is tuned to OEM specs and includes a variable dampening system for outstanding handling and control on all road conditions. These struts offer improved tire contact with the road for increased stability and performance. Each lifted strut is a full replacement of your OEM equipment, engineered for a pain-free installation. Simply remove the factory strut and replace for an instant upgrade! No complicated strut disassembly required!
FEATURES
- Easy bolt-on installation
- Includes pre-loaded coil
- No strut disassembly required
- Maintains smooth, factory-like ride
- Increased ground clearance
- Application specific velocity sensitive valving
- Structurally engineered for lifted applications
- Levels the front of the vehicle by 2-inches, eliminating the need for strut spacers
- Nitrogen gas charged to improve ride, handling, and reduce shock oil aeration
- Offers improved tire contact with the road for increased stability and performance
- Infinitely Variable Damping
- Leak-proof piston seal
- Special formulated low friction shock oil
- Massive 1 3/8in Bore
- Hardened chromed piston rod provides superior corrosion resistance and enhances sealing properties
- 3-year Limited Warranty
- Black powder coat finish
NOTES - IMPORTANT
- Does NOT fit Raptor Models
VEHICLE FITMENT
| YEARS | DRIVE | MAKE | MODEL |
|---|---|---|---|
| 2009-2013 | 4WD | Ford | F-150 |
RECOMMENDED TIRES & WHEELS
| TIRE | WHEEL | BOLT PATTERN | OFFSET | NOTE |
|---|---|---|---|---|
| 295/60R20 | Factory 20 | 6x135 | - | 0.25 Spacer |
| 285/75R17 | Factory 17 | 6x135 | - | - |
| 285/70R18 | Factory 18 | 6x135 | - | - |
| 33x12.50R17 | 17x8.5 | 6x135 | +0 | - |
| 285/70R17 | 17x8.5 | 6x135 | +0 | - |
| 33x12.50R17 | 17x8.5 | 6x135 | +1 | - |
| 33x12.50R17 | 17x9 | 6x135 | -12 | - |
| 285/70R17 | 17x9 | 6x135 | -12 | - |
| 33x12.50R17 | 17x9 | 6x135 | +0 | - |
| 285/70R17 | 17x9 | 6x135 | +0 | - |
| 33x12.50R17 | 17x9 | 6x135 | +1 | - |
| 285/70R17 | 17x9 | 6x135 | +1 | - |
| 33x12.50R17 | 17x9 | 6x135 | +18 | - |
| 285/70R17 | 17x9 | 6x135 | +18 | - |
| 33x12.50R18 | 18x8.5 | 6x135 | +0 | - |
| 305/60R18 | 18x8.5 | 6x135 | +0 | - |
| 33x12.50R18 | 18x8.5 | 6x135 | +1 | - |
| 305/60R18 | 18x8.5 | 6x135 | +1 | - |
| 33x12.50R18 | 18x9 | 6x135 | -12 | Trimming Required |
| 33x12.50R18 | 18x9 | 6x135 | +0 | - |
| 305/60R18 | 18x9 | 6x135 | +0 | - |
| 33x12.50R18 | 18x9 | 6x135 | +1 | - |
| 305/60R18 | 18x9 | 6x135 | +1 | - |
| 33x12.50R18 | 18x9 | 6x135 | +18 | - |
| 305/60R18 | 18x9 | 6x135 | +18 | - |
| 33x12.50R18 | 18x9 | 6x135 | +20 | - |
| 305/60R18 | 18x9 | 6x135 | +20 | - |
| 285/55R20 | 20x9 | 6x135 | -12 | - |
| 33x12.50R20 | 20x9 | 6x135 | +0 | - |
| 305/55R20 | 20x9 | 6x135 | +0 | - |
| 285/55R20 | 20x9 | 6x135 | +0 | - |
| 33x12.50R20 | 20x9 | 6x135 | +1 | - |
| 305/55R20 | 20x9 | 6x135 | +1 | - |
| 285/55R20 | 20x9 | 6x135 | +1 | - |
| 33x12.50R20 | 20x9 | 6x135 | +18 | - |
| 305/55R20 | 20x9 | 6x135 | +18 | - |
| 33x12.50R20 | 20x9 | 6x135 | +20 | - |
| 305/55R20 | 20x9 | 6x135 | +20 | - |
| 285/55R20 | 20x9 | 6x135 | +20 | - |
| 33x12.50R20 | 20x10 | 6x135 | -25 | Trimming Required |
| 285/55R20 | 20x10 | 6x135 | -25 | - |
| 33x12.50R20 | 20x10 | 6x135 | -24 | Trimming Required |
| 285/55R20 | 20x10 | 6x135 | -24 | - |
| 33x12.50R20 | 20x10 | 6x135 | -19 | Trimming Required |
| 285/55R20 | 20x10 | 6x135 | -19 | - |
| 33x12.50R20 | 20x10 | 6x135 | -18 | Trimming Required |
| 285/55R20 | 20x10 | 6x135 | -18 | - |
| 33x12.50R20 | 20x12 | 6x135 | -44 | Trimming Required |
| 305/55R20 | 20x12 | 6x135 | -44 | - |
| 33x12.50R22 | 22x10 | 6x135 | -25 | Trimming Required |
| 33x12.50R22 | 22x10 | 6x135 | -24 | Trimming Required |
| 33x12.50R22 | 22x10 | 6x135 | -19 | Trimming Required |
| 33x12.50R22 | 22x10 | 6x135 | -18 | Trimming Required |
| 33x12.50R22 | 22x12 | 6x135 | -44 | Trimming Required |
