3.5 INCH LIFT KIT ADAPTIVE RIDE CONTROL | CHEVY/GMC 1500 (19-23)
3.5 INCH LIFT KIT ADAPTIVE RIDE CONTROL | CHEVY/GMC 1500 (19-23)
PRICE INCLUDES PARTS AND INSTALLATION

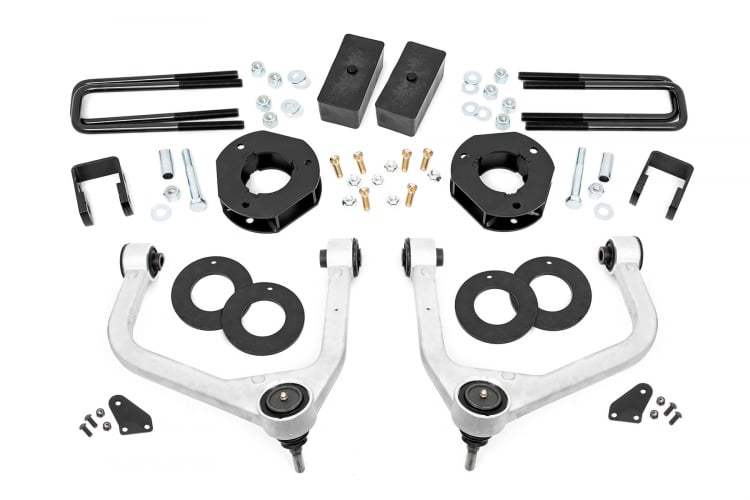

GM’s 2019 Sierra features an impressive all-new design that’s built from the ground up, with aggressive angles and head-turning stylings. Put the finishing touch on your truck with Rough Country’s 3.5in Upper Control Arm Suspension Lift!
This perfect-height lift is a great choice for anyone who wants more than a simple level but doesn’t quite want the full height of a 6-inch option. This kit lifts and levels the front of the vehicle with the rear, offering enough increased ground clearance to run up to 295/55R20 tires with an improved, aggressive look.
This kit also features upgraded ball joints that are easy to install and maintenance free. These POM ball joints offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design. Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment. Includes a Lifetime Replacement Guarantee!
FEATURES
-
Lifts and levels front of vehicle with rear
-
Front Lift: 3.5in
-
Rear Lift: 2in
-
Increased ground clearance.
-
Control arms include POM ball joints for greater range of motion and easier installation
-
Ball joints are pre-installed to ease installation.
-
Fabricated lift blocks are stronger and offer a longer lifespan than cast blocks.
NOTES - IMPORTANT
-
Fits crew cab, short bed models only.
-
Does NOT fit 2019 "Classic" models. (2018 body style)
-
Does NOT fit Chevy Trailboss models.
-
Does NOT fit GMC AT4.
-
ONLY fits models with Adaptive Ride Control.
-
Does NOT fit models with equipped with composite leaf springs.
VEHICLE FITMENT
YEARS | DRIVE | MAKE | MODEL |
---|---|---|---|
2019-2023 | 2WD | Chevy | Silverado 1500 |
2019-2023 | 4WD | Chevy | Silverado 1500 |
2019-2023 | 2WD | GMC | Sierra 1500 |
2019-2023 | 4WD | GMC | Sierra 1500 |
RECOMMENDED TIRES & WHEELS
TIRE | WHEEL | BOLT PATTERN | OFFSET | NOTE |
---|---|---|---|---|
295/55R20 | Factory 20 | 6x5.5 | - | - |
285/60R20 | Factory 20 | 6x5.5 | - | - |
295/55R20 | 20x9 | 6x5.5 | -12 | - |
285/55R20 | 20x9 | 6x5.5 | -12 | - |
305/55R20 | 20x9 | 6x5.5 | +0 | - |
295/55R20 | 20x9 | 6x5.5 | +0 | - |
285/55R20 | 20x9 | 6x5.5 | +0 | - |
305/55R20 | 20x9 | 6x5.5 | +1 | - |
295/55R20 | 20x9 | 6x5.5 | +1 | - |
285/55R20 | 20x9 | 6x5.5 | +1 | - |
305/55R20 | 20x9 | 6x5.5 | +18 | - |
295/55R20 | 20x9 | 6x5.5 | +18 | - |
285/55R20 | 20x9 | 6x5.5 | +18 | - |
305/55R20 | 20x9 | 6x5.5 | +20 | - |
295/55R20 | 20x9 | 6x5.5 | +20 | - |
285/55R20 | 20x9 | 6x5.5 | +20 | - |
285/55R20 | 20x10 | 6x5.5 | -25 | - |
285/55R20 | 20x10 | 6x5.5 | -24 | - |
