3 INCH LIFT KIT SPACER | FORD SUPER DUTY 4WD (2011-2016)
3 INCH LIFT KIT SPACER | FORD SUPER DUTY 4WD (2011-2016)
PRICE INCLUDES PARTS AND INSTALLATION

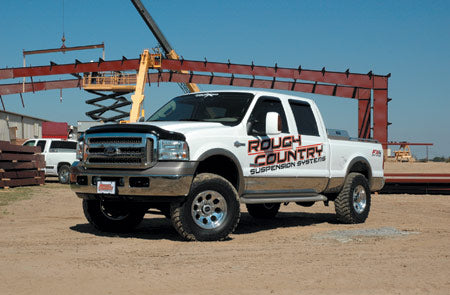

Give your 11-16 Ford Super Duty an impressive upgrade, front to back with Rough Country’s 3" Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance.

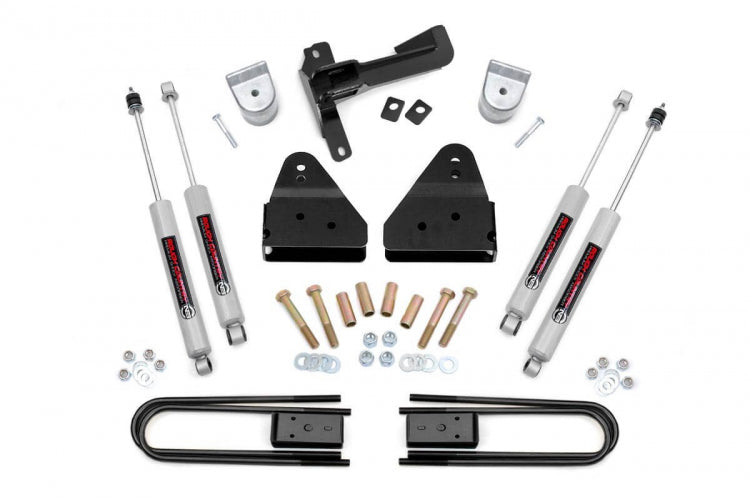

This kit features a set of front, lifted coil spring spacers you gain additional ride height without sacrificing ride quality or performance. A set of radius arm drop brackets as well as a track bar drop bracket are provided to keep everything at optimum angles for a factory-like ride, even after lifting.
A set of Rough Country's premium N3 shocks are also included. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.
Get the wheels you want! Rough Country's 3" Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing.
Best of all, Rough Country's 3" Suspension Lift Kit is backed by our Lifetime Replacement Warranty.
FEATURES
- Easy bolt-on installation
- Maintains factory ride quality
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
NOTES - IMPORTANT
- Overload spring must be removed to install this kit.
- Does NOT 2011-2016 F-350 models.
- Does NOT fit dually models.
VEHICLE FITMENT
| YEARS | DRIVE | MAKE | MODEL |
|---|---|---|---|
| 2011-2016 | 4WD | Ford | F-250 Super Duty |
RECOMMENDED TIRES & WHEELS
| TIRE | WHEEL | BOLT PATTERN | OFFSET | NOTE |
|---|---|---|---|---|
| 35x12.50R17 | Factory 17 | 8x170 | - | - |
| 35x12.50R17 | 17x9 | 8x170 | -12 | - |
| 35x12.50R17 | 17x9 | 8x170 | +0 | - |
| 35x12.50R17 | 17x9 | 8x170 | +1 | - |
| 35x12.50R18 | Factory 18 | 8x170 | - | - |
| 35x12.50R18 | 18x9 | 8x170 | -12 | - |
| 35x12.50R18 | 18x9 | 8x170 | +0 | - |
| 35x12.50R18 | 18x9 | 8x170 | +1 | - |
| 35x12.50R20 | Factory 20 | 8x170 | - | - |
| 35x12.50R20 | 20x9 | 8x170 | -12 | - |
| 35x12.50R20 | 20x9 | 8x170 | +0 | - |
| 35x12.50R20 | 20x9 | 8x170 | +1 | - |
| 295/60R20 | 20x10 | 8x170 | -25 | Minor Trimming |
| 295/60R20 | 20x10 | 8x170 | -24 | Minor Trimming |
| 295/60R20 | 20x10 | 8x170 | -19 | Minor Trimming |
| 295/60R20 | 20x10 | 8x170 | -18 | Minor Trimming |
| 35x12.50R20 | 20x10 | 8x170 | -25 | Minor Trimming |
| 35x12.50R20 | 20x10 | 8x170 | -24 | Minor Trimming |
| 35x12.50R20 | 20x10 | 8x170 | -19 | Minor Trimming |
| 35x12.50R20 | 20x10 | 8x170 | -18 | Minor Trimming |
| 35x12.50R22 | 22x10 | 8x170 | -25 | Minor Trimming |
| 35x12.50R22 | 22x10 | 8x170 | -24 | Minor Trimming |
| 35x12.50R22 | 22x10 | 8x170 | -19 | Minor Trimming |
| 35x12.50R22 | 22x10 | 8x170 | -18 | Minor Trimming |
