4 INCH LIFT KIT CHEVY/GMC C1500/K1500 TRUCK/SUV 4WD (1988-1999)
4 INCH LIFT KIT CHEVY/GMC C1500/K1500 TRUCK/SUV 4WD (1988-1999)
PRICE INCLUDES PARTS AND INSTALLATION
Get a huge boost for your '88 - '98 Chevy / GMC 1500, Tahoe, and Suburban with Rough Country's all-inclusive 4-inch Suspension Lift.

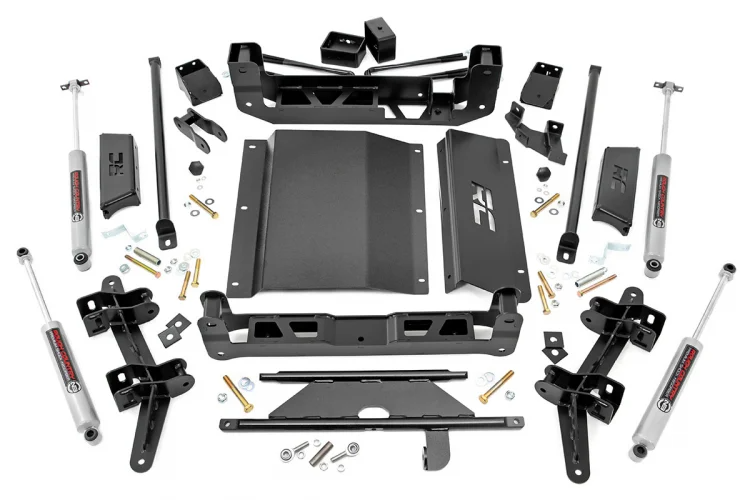

This kit features a set of beefy front and rear crossmembers and differential drop brackets, this kit can take what you dish out and keep on kicking. A set of drop-torsion bar brackets and a durable front skid plate both feature laser-cut RC logos that peak out from under the frame, giving your vehicle an unmistakable look.
Rough Country’s 4" Suspension Kit features (4) Premium N3 Nitrogen-charged shocks, giving your truck incredible ride-quality both on and off-road. This kit ships with a massive steering link and heim joint assist link. Rear lift blocks and add-a-leafs give plenty of clearance - enough to accommodate up to 33-inch tires. Our new and improved design allows your vehicle to retain it's stock track width, and installation is now even easier.
This all-inclusive kit comes with everything you need, and best of all this kit features Rough Country’s Lifetime Replacement Warranty.
FEATURES
- Redesigned for easier installation
- Track width remains stock
- Increased ground clearance
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Torsion bar drop brackets and front skid plate feature RC laser cut logos.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
NOTES - IMPORTANT
- ONLY fits models with 6 lug wheels.
- Will fit 1999 "Classic" model pickups.
- Requires minor cutting and grinding.
- Requires rerouting of the exhaust for front drive shaft clearance.
- Tahoe/Yukon, Suburban models require extended rear sway-bar links. SKU: 1038
- 4-Door Tahoe and Yukon models require torsion bar crossmember bracket kit. SKU: 89501
- Models equipped with AutoTrac will require a new aftermarket driveshaft. SKU: 5082.1
- Does NOT fit straight front axle models.
VEHICLE FITMENT
YEARS | DRIVE | MAKE | MODEL |
---|---|---|---|
1988-1999 | 4WD | Chevy | C1500/K1500 Pickup |
1992-1999 | 4WD | Chevy | C1500/K1500 Suburban |
1992-1994 | 4WD | Chevy | K1500 Blazer |
1995-1999 | 4WD | Chevy | Tahoe |
1988-1999 | 4WD | GMC | C1500/K1500 Pickup |
1992-1999 | 4WD | GMC | C1500/K1500 Suburban |
1992-1999 | 4WD | GMC | Yukon |
RECOMMENDED TIRES & WHEELS
TIRE | WHEEL | BOLT PATTERN | OFFSET | NOTE |
---|---|---|---|---|
305/75R16 | Factory 16 | 6x5.5 | - | - |
33x12.50R16 | 16x8 | 6x5.5 | -12 | - |
33x12.50R17 | 17x8.5 | 6x5.5 | +0 | - |
305/70R17 | 17x8.5 | 6x5.5 | +0 | - |
33x12.50R17 | 17x8.5 | 6x5.5 | +1 | - |
305/70R17 | 17x8.5 | 6x5.5 | +1 | - |
33x12.50R17 | 17x9 | 6x5.5 | -12 | - |
305/70R17 | 17x9 | 6x5.5 | -12 | - |
33x12.50R17 | 17x9 | 6x5.5 | +0 | - |
305/70R17 | 17x9 | 6x5.5 | +0 | - |
33x12.50R17 | 17x9 | 6x5.5 | +1 | - |
305/70R17 | 17x9 | 6x5.5 | +1 | - |
33x12.50R18 | 18x8.5 | 6x5.5 | +0 | - |
305/65R18 | 18x8.5 | 6x5.5 | +0 | - |
33x12.50R18 | 18x8.5 | 6x5.5 | +1 | - |
305/65R18 | 18x8.5 | 6x5.5 | +1 | - |
33x12.50R18 | 18x9 | 6x5.5 | -12 | - |
305/65R18 | 18x9 | 6x5.5 | -12 | - |
33x12.50R18 | 18x9 | 6x5.5 | +0 | - |
305/65R18 | 18x9 | 6x5.5 | +0 | - |
33x12.50R18 | 18x9 | 6x5.5 | +1 | - |
305/65R18 | 18x9 | 6x5.5 | +1 | - |
33x12.50R20 | 20x9 | 6x5.5 | -12 | - |
305/55R20 | 20x9 | 6x5.5 | -12 | - |
33x12.50R20 | 20x9 | 6x5.5 | +0 | - |
305/55R20 | 20x9 | 6x5.5 | +0 | - |
33x12.50R20 | 20x9 | 6x5.5 | +1 | - |
305/55R20 | 20x9 | 6x5.5 | +1 | - |
305/55R20 | 20x10 | 6x5.5 | -25 | - |
305/55R20 | 20x10 | 6x5.5 | -24 | - |
